Aidoo Pro Inverter/VRF
Connectivity and home automation integration for AC units
Aidoo Pro Line
Aidoo Pro devices connect Inverter and VRF AC units with home automation and building management systems from a single platform. Available in different versions.

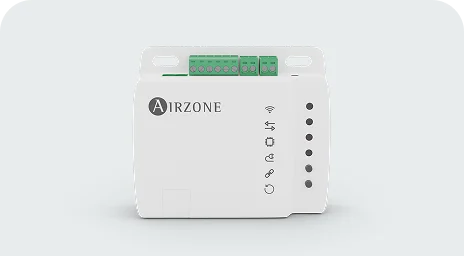

Aidoo Pro Wi-Fi
Device with Wi-Fi connectivity and compatibility with multiple systems.

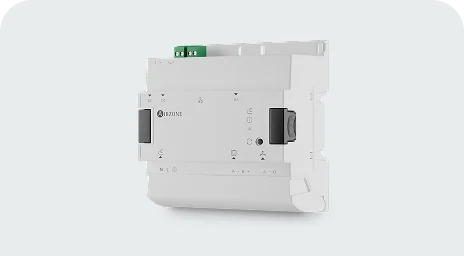

Aidoo Pro HUB
Device with Ethernet connectivity and multiprotocol integration capability.

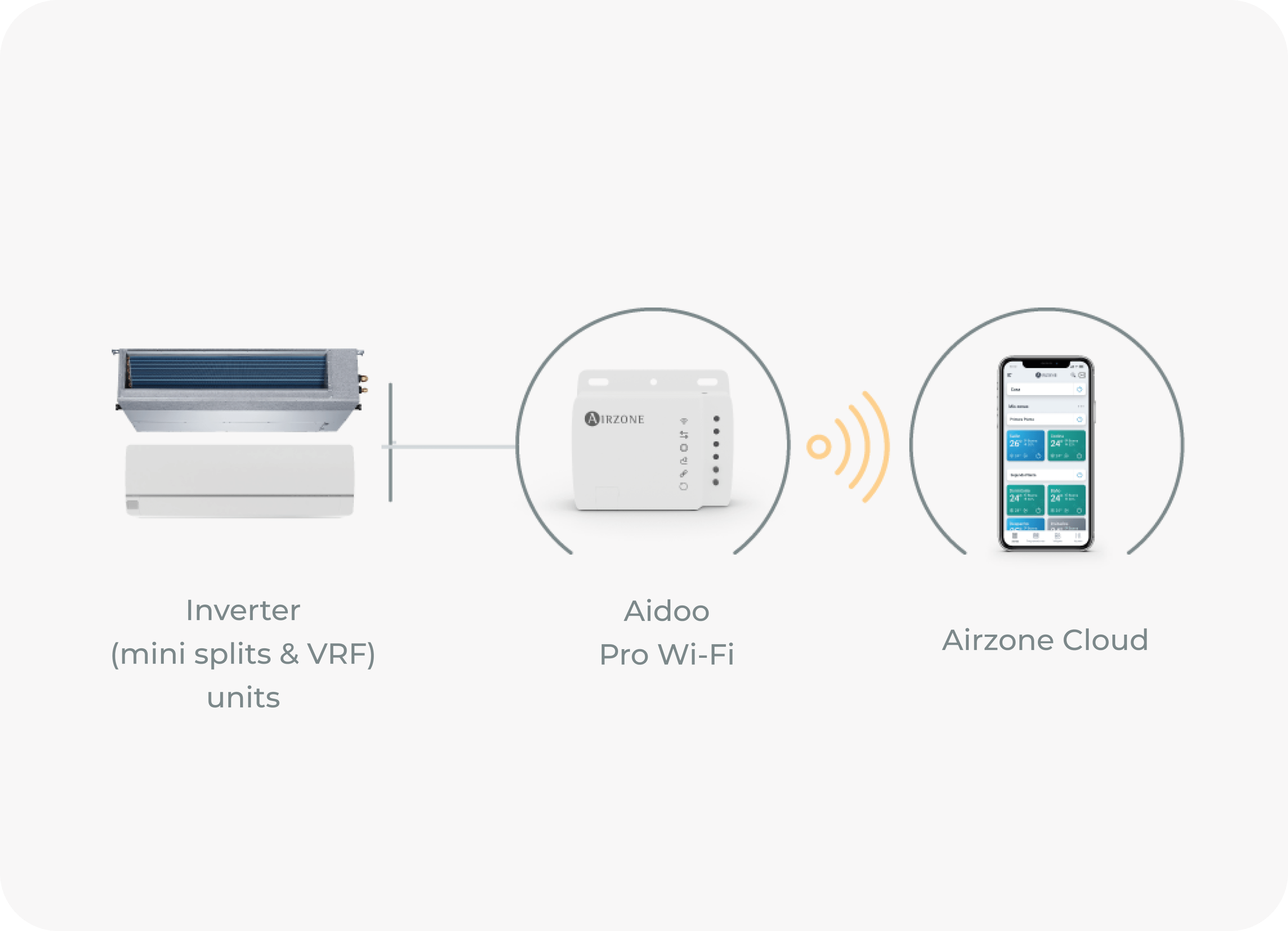

Aidoo Pro Wi-Fi
Advanced connectivity technology
Connect your Inverter, VRF, and Fan Coil units to the Airzone Cloud app, where you can access and manage HVAC remotely. Works in both new installations and existing units.
Features of the Aidoo Wi-Fi
2.4 GHz Wi-Fi connection
AC unit On/Off.
Operation mode selection.
Set-point temperature adjustment.
Fan speed selection.
Remote access to indoor unit alerts and error codes.
Remote reading of indoor unit error codes.

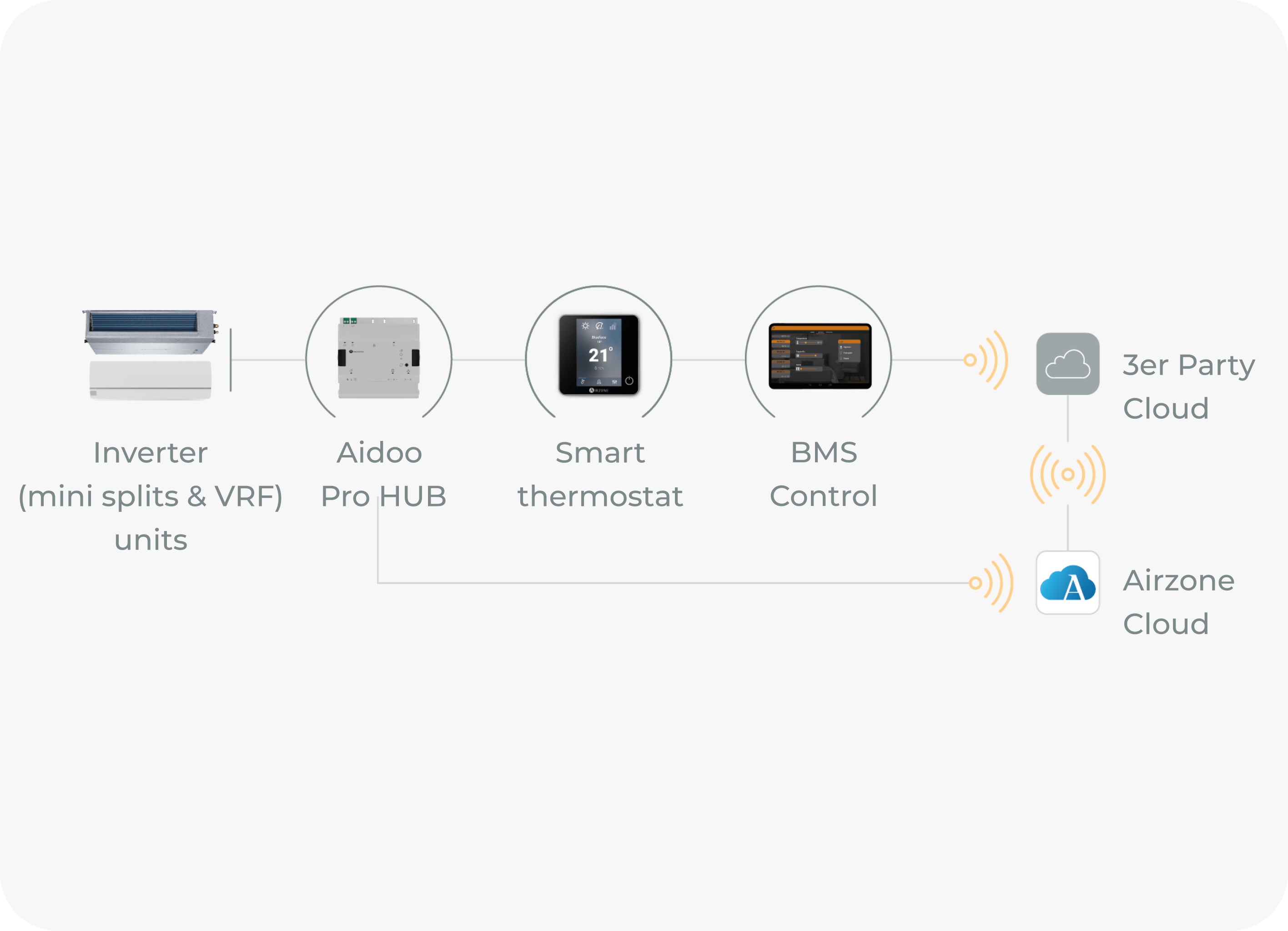

Aidoo Pro HUB
Secure integration for professional environments
A robust solution for remote management and integration of different types of units, such as VRF, Air-to-Water, and Ventilation systems. It combines wired Ethernet or Dual Wi-Fi (2.4/5 GHz) connectivity with Cloud services. Aidoo Pro HUB provides secure infrastructure in offices, hotels, educational facilities, and commercial spaces.
Features of the Aidoo Pro HUB
Wired Ethernet or Wi-Fi connection (2.4/5 GHz).
Integration port: Modbus RTU/TCP, BACnet.
MS-TP/IP, Lutron Palladiom thermostat.
Compatible with the Blueface thermostat, AirQ Sensor, and AirQ Box.
Control and configuration through the Airzone Cloud app.
Integration via local API and Cloud API, multicast mDNS.
Auxiliary heat management and heat source lockout.
Automatic mode change with dual set-point temperature control.
HVAC control and home automation integration
The Aidoo Pro line enables management of these units through home automation systems and Building Management Systems (BMS).
Home automation systems and BMS
Aidoo Pro Inverter/VRF connects AC systems from leading brands with home automation and management systems. Direct communication with the unit keeps operating statuses synchronized between the installation and the control system.
Available integration options:
Cloud API · REST API · BACnet MS/TP · Modbus · Drivers.
Smart thermostats
All Aidoo Pro solutions resolve integration challenges between Inverter/VRF AC units and smart thermostats.
Aidoo Pro manages the smart thermostat’s dry-contact input and communicates with the unit using the manufacturer’s native protocols.
Another connection method is through the thermostat’s Cloud service, using its API.
Complete control
Aidoo Pro Inverter/VRF devices provide bidirectional control of individual units or centralized management of groups of units.

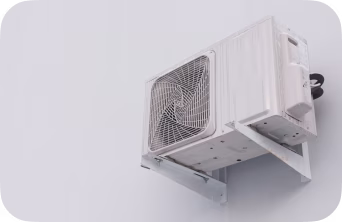

Multi-brand
The Airzone Cloud app can be used as a smart AC controller for different brands and models, with communication protocols approved by the manufacturers. This makes it easier to make an air conditioner unit smart regardless of the brand.
Multi-user
The HVAC system manager can define different levels of control for different users.
Multi-session
The same user can have sessions open on different devices.
Individual unit control
To provide smart AC control, each Aidoo Pro device manages an individual AC unit and offers the following operation functions from the Airzone Cloud app:

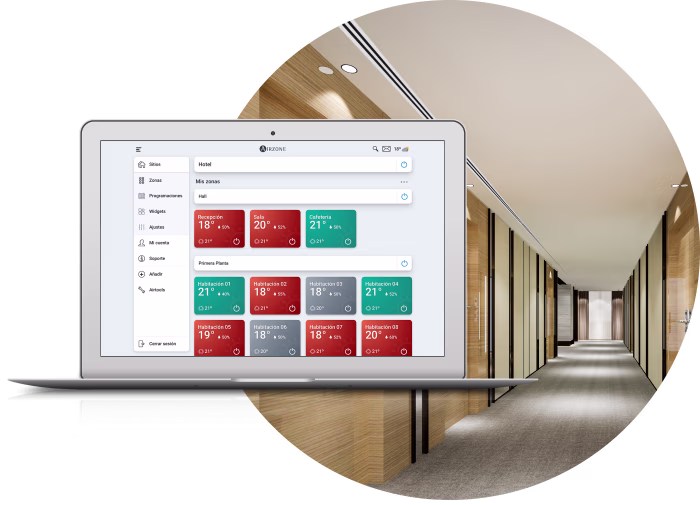

Aidoo Pro quick guideControl of groups of AC units
Individual direct expansion AC units, each controlled by an Aidoo Pro Inverter/VRF device, can be managed by groups from the Airzone Cloud app, facilitating the maintenance of large installations or the installations of companies with multiple locations, points of sale or offices.
Control options for groups of AC units:
Which Aidoo Pro do you need for your HVAC unit?
Types of Aidoo Pro
How to choose the type of Aidoo Pro?Unit brand
My AC unit does not appear in the listAC unit model
How can I find out the model of my AC unit?How to choose the right Aidoo Pro type for your system?
AIDOO PRO WI‑FI | AIDOO PRO HUB | ||||
|---|---|---|---|---|---|
Type of
AC unit | Inverter/VRF, Fan Coil, | Inverter/VRF, Air-to-Water | |||
Wi-Fi Dual 2.4-5 | Yes | Yes | |||
Ethernet | - | Yes | |||
GYW input for | Yes | - | |||
Power supply | 12 VDC (external | 220 VAC | |||
RS-485 port | 1 port (Airzone | 2 ports (Airzone | |||
Digital input | 1 configurable (Inverter/VRF, | 1 configurable | |||
Airzone thermostat | Yes (Inverter/VRF and | Yes (Inverter/VRF) | |||
Auxiliary heat | Yes (Inverter/VRF and | Yes (Inverter/VRF) | |||
AirQ air quality | Yes (Inverter/VRF and | Yes (Inverter/VRF) |
Frequently Asked Questions about Aidoo Pro
Where can I find the model number of my AC unit?
Why do I need a specific Aidoo Pro device for each brand and model?
aidooPro.ranges.sections.faqs.questionThree
Where can I find the technical documentation for the Aidoo Pro line?
Find the right Aidoo for your installation
